PAVING FABRIC

PAVING

PAVING FABRIC

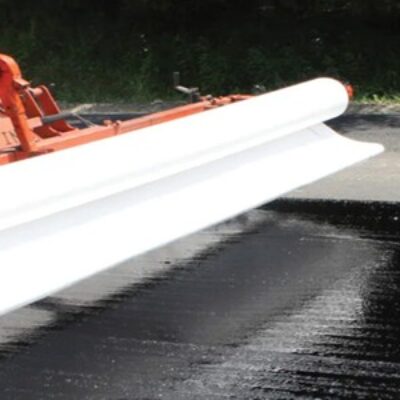

Paving fabric is a bitumen-saturated, nonwoven polypropylene or polyester geotextile placed between an existing pavement surface and a new asphalt overlay.
Paving Fabric (also called Asphalt Overlay Fabric or Geotextile for Pavement) is a nonwoven geotextile used in road construction and maintenance to extend pavement life, prevent reflective cracking, and improve waterproofing between old and new asphalt layers.

Improves load distribution and enhances pavement strength.
Reduces stress between the old and new asphalt layers, minimizing reflective cracking
Prevents water from seeping into the pavement base or subgrade.
Prevents intermixing of materials from different pavement layers.

Technical Specifications (Typical)



Property

     Typical Value

Material

     Nonwoven Polypropylene

Mass per unit area

      120–200 gsm

Tensile strength

       ≥ 8 kN/m

Elongation

       50–80%

Melting point

      ≥160°C

Bitumen retention

      0.9–1.1 kg/m²

Applications

  • Highway and road rehabilitation
  • Airport runways and taxiways
  • Bridge decks
  • Parking areas
  • Asphalt overlays on concrete pavements
